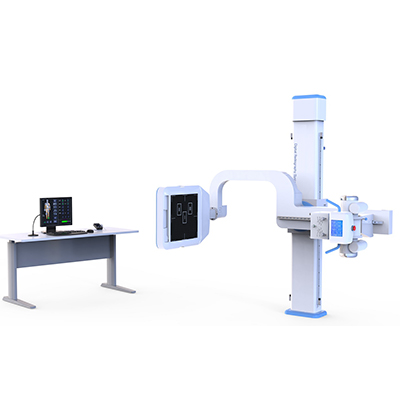

High Frequency Digital Radiography X-ray System AM-ARI-8500
- I. Application
This machine is applied to take radiography on every part of human body, such as head, limbs, chest, limbus and abdomen and etc.
Description
- II. Specification
| High-
frequency X-ray machine |
Output power | 50kW | |
| Main inverter frequency | 260kHz | ||
| X-ray tube | Dual-focus X-ray tube | Small focus:0.6 Large focus:1.2 | |
| Output power | 22kW/50kW | ||
| Anode Capacity | 210kJ(300kU) | ||
| Anode Angle | 12° | ||
| Speed of rotating anode | 3200rpm | ||
| Tube Current | 10mA – 650mA | ||
| Tube voltage | 40-150kV | ||
| mAs | 1-1000mAs | ||
| Exposure Time | 0.001-6.3s | ||
| AEC | Option | ||
|
Digital Image System |
Digital Detector |
Field of view | 17”X17” |
| Pixel | 3K X 3K | ||
| Ultimate spatial resolution | 3.7LP/mm | ||
| Pixel size | 139um | ||
| Output grayscale | 14bit | ||
| Imaging time | ≤9s | ||
| Image Workstation | Acquisition module | Inside enhancement module | |
| Image information management | Dicomimage transmission
Dicomfilm printing Dicomimage storage (hard disk, compact disk) |
||
| Mechanical structure and performance | U-arm | Vertical movement range | ≥1250 mm (motorized control) |
| Focus-screen movement range | 1000mm-1800mm (motorized control) | ||
| Rotation range | -40°-+130° (motorized control) | ||
| Detector rotation | -40°-+40° | ||
| Photography table
(Optional) |
Table size | 2000mm*650mm | |
| Table height | ≤740mm | ||
| Transverse movement | 200mm (electromagneticlock) | ||
| Longitudinal movement | 100mm (electromagnetic lock) | ||
| Power supply | 380V 50/60Hz |
